Purity Ball Valve 3-Way
Ball Valve Actuated & Manual Type
Valve Size: 15mm to 100 mm Size (1/2" to 4")
Body MOC: SS 304, SS 316, SS 304L, SS 316L
Ball MOC: SS 304, SS 316, SS 304L, SS 316L
Seat MOC: PTFE (Compliance with FDA 21 CFR 177.2600 and USP Class VI.)
End Connection: TC End, Weld End, SMS End, DIN End, Flanged End.
Design : T-Port & L-Port Design
Features
- Suitable for High Purity / Pure Steam application and will not leave Liquid
- Have Variety of End Connections.
- A Simple Design and easy cleaning maintenance helps to Residue on the Valve Body, incomplete cleaning causes bacterial growth.
- Having Variety of Design.
- Our Ball Valve is design for Pigging Application.

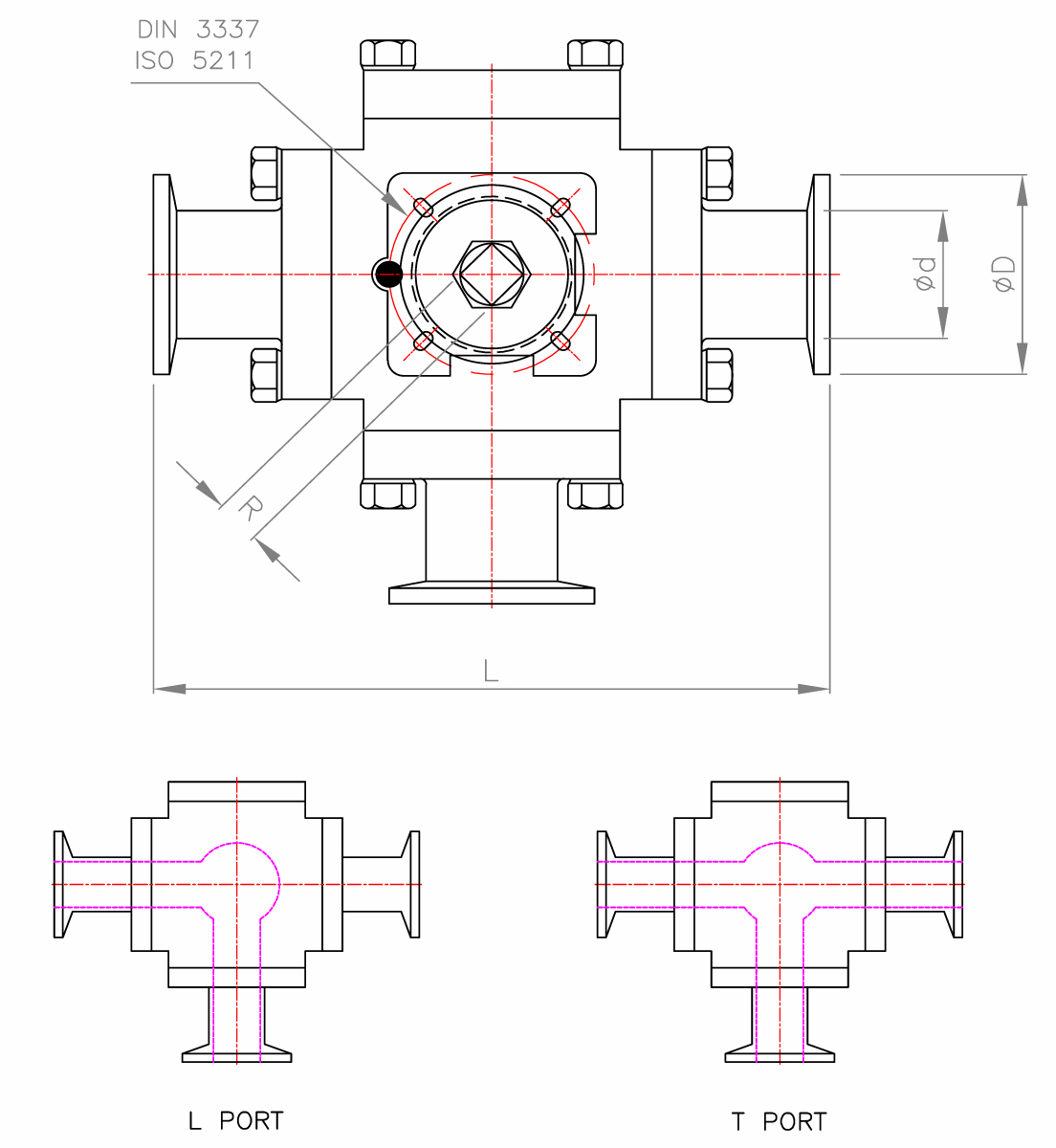

| PURITY BALL VALVE - 3WAY | ||||||
|---|---|---|---|---|---|---|
| SIZE | ISO-5211 | Ød | ØD | L | R | |
| 15 | 1/2" | F03 | 9.5 | 25.4 | 118 | 9 |
| 20 | 3/4" | F03 | 15.8 | 25.4 | 127 | 9 |
| 25 | 1" | F04 | 22.2 | 50.4 | 152.6 | 11 |
| 40 | 1.5" | F05 | 35 | 50.4 | 175 | 14 |
| 50 | 2" | F05 | 47.6 | 63.9 | 190 | 14 |
| 65 | 2.5" | F07 | 60.2 | 77.5 | 228 | 17 |
| 80 | 3" | F10 | 73 | 90.9 | 260.6 | 22 |
| 100 | 4" | F10 | 97.4 | 118.9 | 290 | 22 |
