Bio / Pharma
High Purity Ball Valve
Ball Valve Manual Type
Valve Size: 15mm to 80 mm Size (1/2" to 3")
Body MOC: SS 304, SS 316, SS 304L, SS 316L
Ball MOC: SS 304, SS 316, SS 304L, SS 316L
End Connection: TC End, Weld End, SMS End, DIN End.
Application: Cosmectic, Food, Pharmaceutical, Semiconductor Etc.

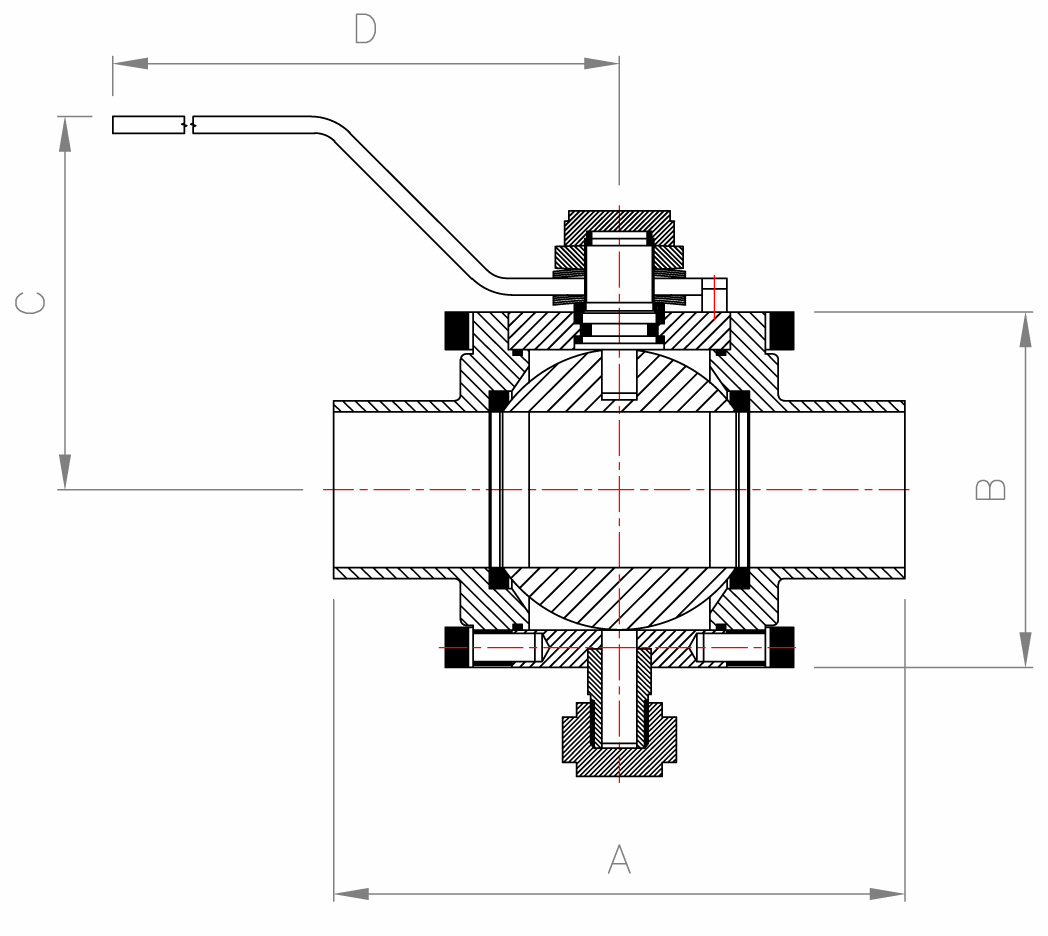

| HIGH PURITY BALL VALVE | |||||
|---|---|---|---|---|---|
| SIZE | A | B | C | D | |
| 25 | 1" | 95.3 | 58.7 | 60.3 | 163.5 |
| 40 | 1.5" | 108 | 77.8 | 71.4 | 163.5 |
| 50 | 2" | 119 | 93.7 | 79.4 | 163.5 |
| 65 | 2.5" | 135 | 106.4 | 85.7 | 163.5 |
| 80 | 3" | 165.1 | 125.4 | 95.3 | 163.5 |
