Diaphragm Valve 3 - Way / U - Bend
Diaphragm Valve Actuated and Manual Type
Valve Size : 15mm to 100 mm Size (1/2" to 4")
Valve Type : 3-Way / U-Bend
Standard : BPE, 3A, DIN
Body MOC : Forged, SS 316L
Diaphragm MOC :
EPDM + PTFE (10 Degree C to 150 Degree C)
Compliance with FDA and USV Class VI
End Connection : Weld End, Clamp End,
Surface : SF1 : ID polished to Ra≦0.5μm
SF4 :
EP finished to Ra≦0.38μm
Design conform to ASME BPE standard
ID/OD mirror polished and
ID Ra≦ 0.5μm / OD Sand blasted

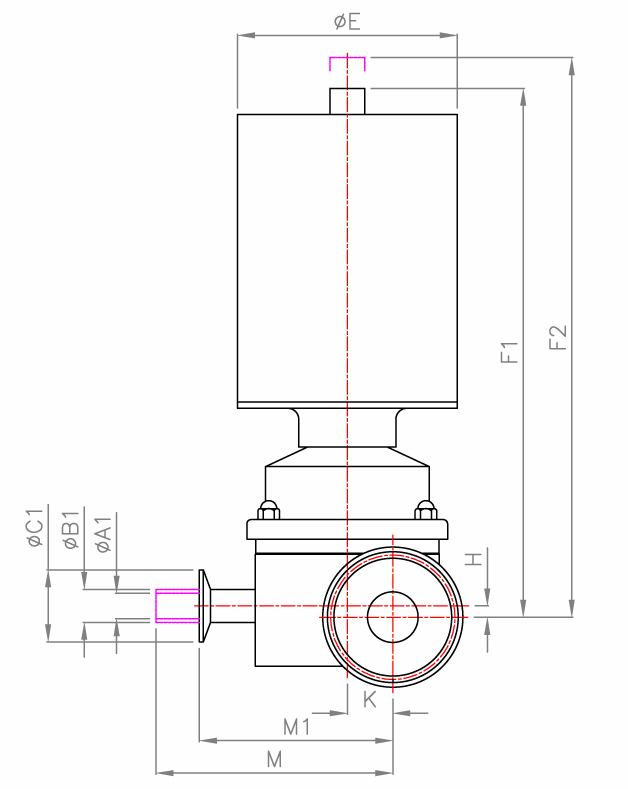

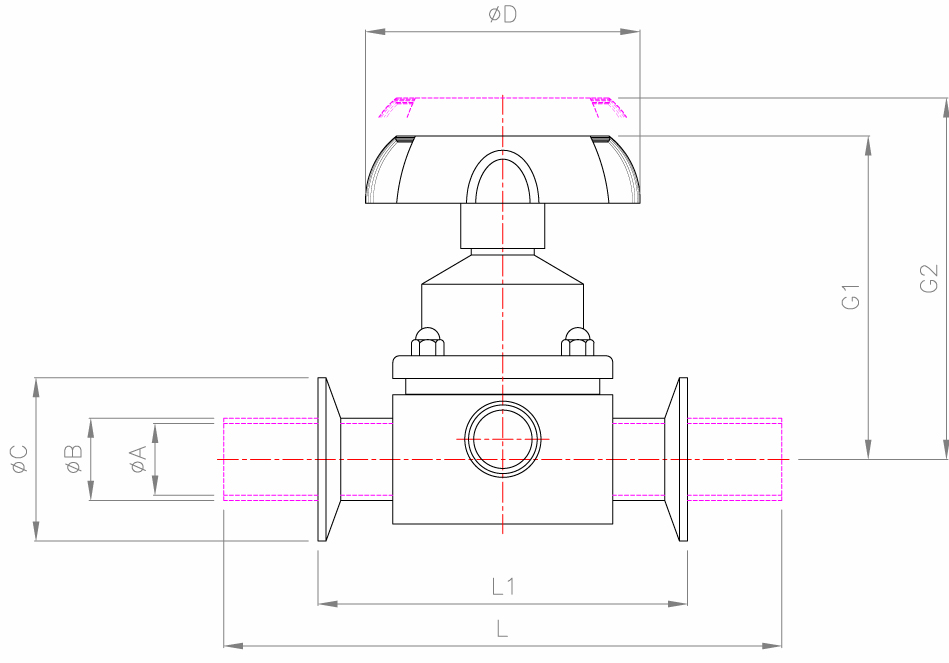

| DIAPHRAGM VALVE - 3 WAY / U BEND (PNEUMATIC / MANUAL | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SIZE | 1/2"x1/2" | 1/2"x3/4" | 1/2"x 1" | 1/2"x1.5" | 1/2"x 2" | 3/4"x3/4" | 3/4"x 1" | 3/4"x1.5" | 3/4"x 2" | 1"x 1" | 1"x 1.5" | 1"x 2" | 1.5"x 1.5" | 1.5"x 2" | 2"x 2" |
| ØA | 9.4 | 15.75 | 22.1 | 34.8 | 47.5 | 15.75 | 22.1 | 34.8 | 47.5 | 22.1 | 34.8 | 47.5 | 34.8 | 47.5 | 47.5 |
| ØB | 12.7 | 19.05 | 25.4 | 38.1 | 50.8 | 19.05 | 25.4 | 38.1 | 50.8 | 25.4 | 38.1 | 50.8 | 38.1 | 50.8 | 50.8 |
| ØC | 25 | 25 | 50.5 | 50.5 | 64 | 25 | 50.5 | 50.5 | 64 | 50.5 | 50.5 | 64 | 50.5 | 64 | 64 |
| ØA1 | 9.4 | 9.4 | 9.4 | 9.4 | 9.4 | 15.75 | 15.75 | 15.75 | 15.75 | 22.1 | 22.1 | 22.1 | 34.8 | 34.8 | 47.5 |
| ØB1 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 19.05 | 19.05 | 19.05 | 19.05 | 25.4 | 25.4 | 25.4 | 38.1 | 38.1 | 50.8 |
| ØC1 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 50.5 | 50.5 | 50.5 | 50.5 | 50.5 | 64 |
| ØD | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 95 | 95 | 95 | 95 | 95 | 118 |
| ØE | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 85 | 85 | 85 | 85 | 85 | 133 |
| F1 | 122 | 122 | 122 | 122 | 122 | 122 | 122 | 122 | 122 | 212 | 212 | 212 | 217 | 217 | 315 |
| F2 | 131 | 131 | 131 | 131 | 131 | 131 | 131 | 131 | 131 | 225 | 225 | 225 | 232 | 232 | 333 |
| G1 | 74 | 74 | 74 | 74 | 74 | 74 | 74 | 74 | 74 | 100 | 100 | 100 | 119 | 119 | 135 |
| G2 | 83 | 83 | 83 | 83 | 83 | 83 | 83 | 83 | 83 | 113 | 113 | 113 | 134 | 134 | 153 |
| H | - | 6.18 | 13.2 | 19.5 | 19.5 | 4.5 | 10.7 | 17.5 | 17.5 | 6.2 | 14.5 | 18.4 | 6.2 | 13.7 | - |
| K | 6.8 | 9.98 | 13.15 | 19.5 | 25.85 | 9.98 | 13.15 | 19.5 | 25.85 | 16.05 | 22.4 | 28.75 | 22.4 | 28.75 | 28.75 |
| L | 139.7 | 139.7 | 154 | 153.6 | 153.6 | 139.7 | 153.6 | 153.6 | 153.6 | 172.6 | 172.6 | 172.6 | 197.6 | 197.6 | 211.6 |
| L1 | 88.9 | 88.9 | 114.3 | 114.3 | 114.3 | 88.9 | 114.3 | 114.3 | 114.3 | 114.3 | 114.3 | 114.3 | 139.7 | 139.7 | 158.8 |
| M | 69.4 | 72.58 | 75.75 | 82.1 | 88.45 | 72.58 | 75.75 | 82.1 | 88.45 | 86.65 | 93 | 99.35 | 105 | 111.35 | 123.75 |
| M1 | 51 | 54.18 | 57.35 | 63.7 | 70.05 | 54.18 | 57.35 | 63.7 | 70.05 | 70.6 | 74.6 | 80.95 | 86.6 | 92.95 | 98.95 |
