3A Eccentric Check Valve for Horizontal line
Valve Size : 15mm to 100 mm Size (1/2" to
4")
Body MOC : SS 316L
End Connection : TC End, Weld End
Surface : SF1: OD≦0.5μm
SF4 : EP finished to Ra≦0.38μm
ID ≦0.38μm or as per requirement.
Special Feature
Self Drain Design.

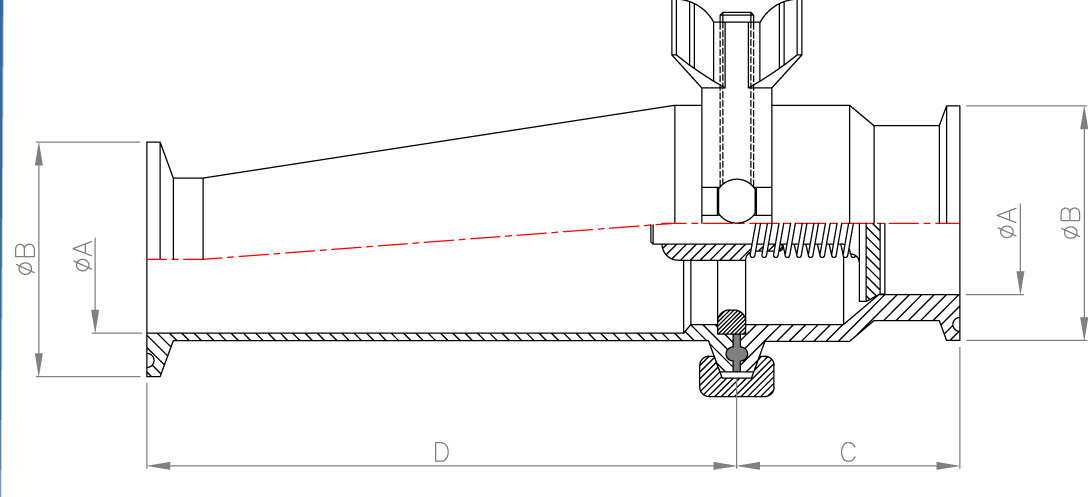

| ECCENTRIC NON RETURN VALVE | ||||
|---|---|---|---|---|
| 3A | ØA | ØB | C | D |
| 1" | 22.1 | 50.5 | 48 | 127.3 |
| 1.5" | 34.8 | 50.5 | 48 | 127.3 |
| 2" | 47.5 | 64 | 48 | 127.3 |
| 2.5" | 60.2 | 77.5 | 48 | 127.3 |
