Hygienic Sight Glass
Size : 15mm to 100 mm Size (1/2" to 4")
Body MOC : SS 304, SS 316L
End Connection : TC End, Weld End, Long End, SMS End, DIN End.
Glass MOC : PYREX Borosilicate Glass
Seal MOC : EPDM, Silicone and Viton
Screw Bolt MOC : Full Stainless Steel
| HYGIENIC SIGHT GLASS | ||||||
|---|---|---|---|---|---|---|

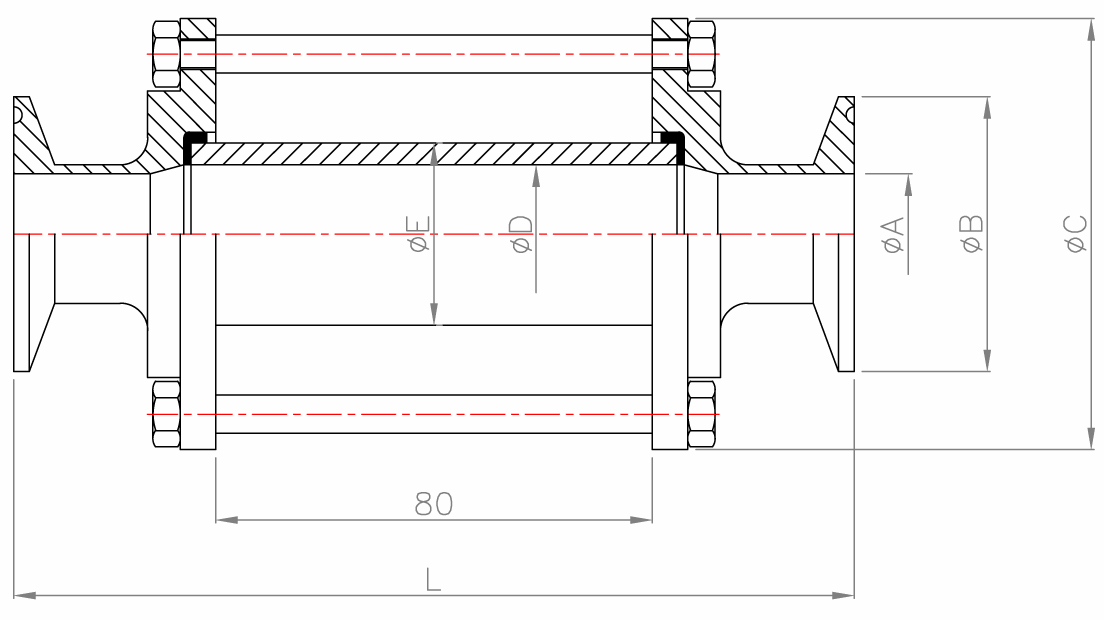

| 3A / BS CLAMP END | ||||||
| SIZE | ØA | ØB | ØC | ØD | ØE | L |
| 1/2" | 9.4 | 25.5 | 47 | 10.2 | 15 | 116 |
| 3/4" | 15.75 | 25.2 | 47 | 174 | 22 | 116 |
| 1" | 22.1 | 50.5 | 79 | 26 | 32 | 143 |
| 1.5" | 34.8 | 50.5 | 85 | 34 | 40 | 146 |
| 2" | 47.5 | 64 | 105 | 50 | 60 | 150 |
| 2.5" | 60.2 | 77.5 | 112 | 65 | 75 | 150 |
| 3" | 72.9 | 91 | 125 | 75.4 | 85 | 156 |
| 4" | 97.6 | 119 | 157 | 100 | 110 | 156 |
| HYGIENIC SIGHT GLASS | ||||||
|---|---|---|---|---|---|---|

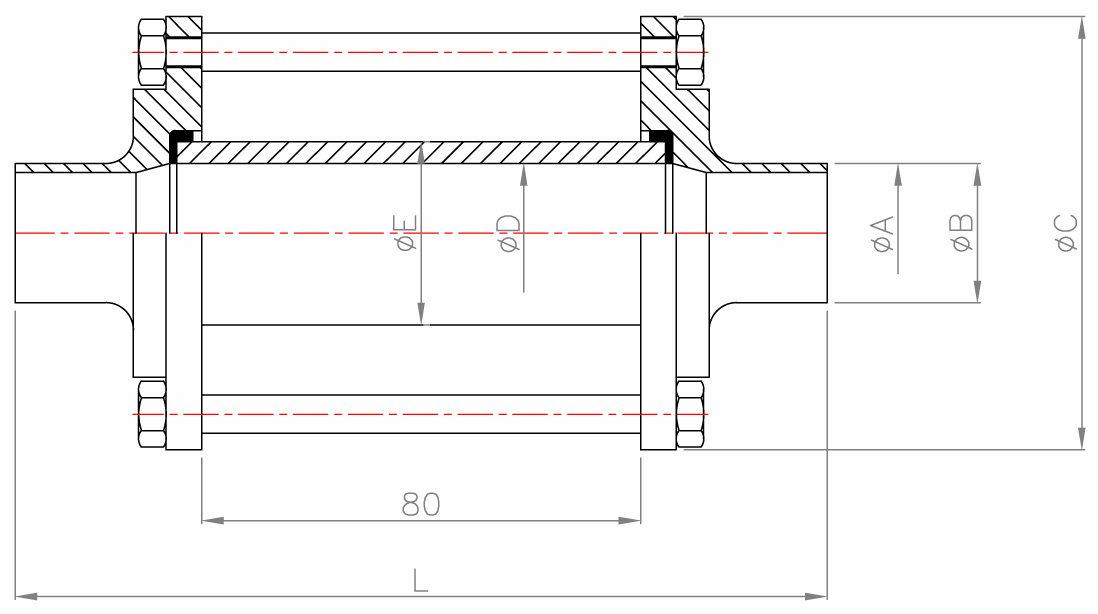

| 3A / BS WELD END | ||||||
| SIZE | ØA | ØB | ØC | ØD | ØE | L |
| 1/2" | 9.4 | 12.7 | 47 | 10.2 | 15 | 106 |
| 3/4" | 15.75 | 19.05 | 47 | 17 | 22 | 106 |
| 1" | 22.1 | 25.4 | 79 | 26 | 32 | 148 |
| 1.5" | 34.8 | 38.1 | 85 | 34 | 40 | 156 |
| 2" | 47.5 | 50.8 | 105 | 50 | 60 | 160 |
| 2.5" | 60.2 | 63.5 | 112 | 65 | 75 | 160 |
| 3" | 72.9 | 76.2 | 125 | 75.4 | 85 | 162 |
| 4" | 97.6 | 101.6 | 157 | 100 | 110 | 167 |
