Conical Filter Housing

Key Features:

• Sanitary Construction: Manufactured from high-quality, food-grade stainless steel to ensure compatibility with sanitary requirements and resistance to corrosion, chemicals, and high temperatures.
• Connections: The housing is equipped with sanitary connections, such as tri-clamp, DIN, SMS etc fittings, to facilitate easy installation and disassembly for cleaning and maintenance.
• Compliance: The housing complies with industry standards and regulations, such as FDA, and cGMP, to meet sanitary requirements and ensure product purity.
• Durable Design: Built to withstand the rigors of demanding industrial environments.

Applications:
The Sanitary Conical Filter is ideal for a wide range of sanitary filtration applications, including:
• Pharmaceutical Manufacturing
• Food and Beverage Processing
• Biotechnology
• Water Treatment
• Chemical Processing

Benefits:
• Reduced Downtime: : Easy cleaning and maintenance minimize downtime associated with filter changes.
• Ease of Maintenance: These housings are designed for easy disassembly and cleaning, minimizing downtime and maintenance costs

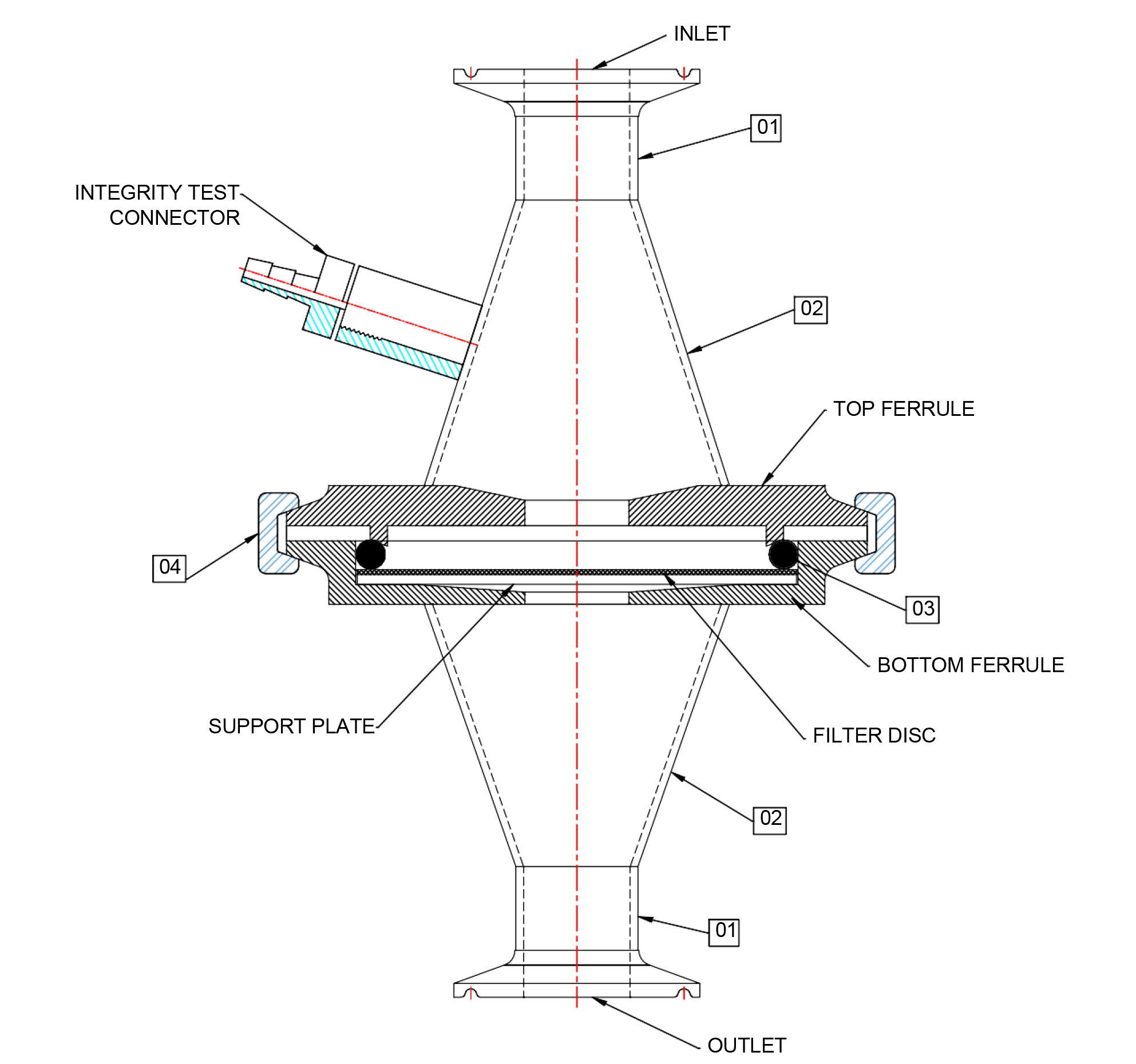

PARTNO DESCRIPTION M.O.C. QTY.
01 TC FERRULE SS316L 02 NOS.
02 CONICAL DISH SS316L 02 NOS..
03 'O' RING SILICONE 01 NO.
04 TC CLAMP SS304 01 NO..


Product Specification
Micron Rating as per Requirement 0.5/5/10 µ
MOC SS 316L, SS 316, SS 304, special Alloy on request.
End Connection TC End, Flanged End, SMS Union, etc.
Gasket Silicone, Viton, FKM
