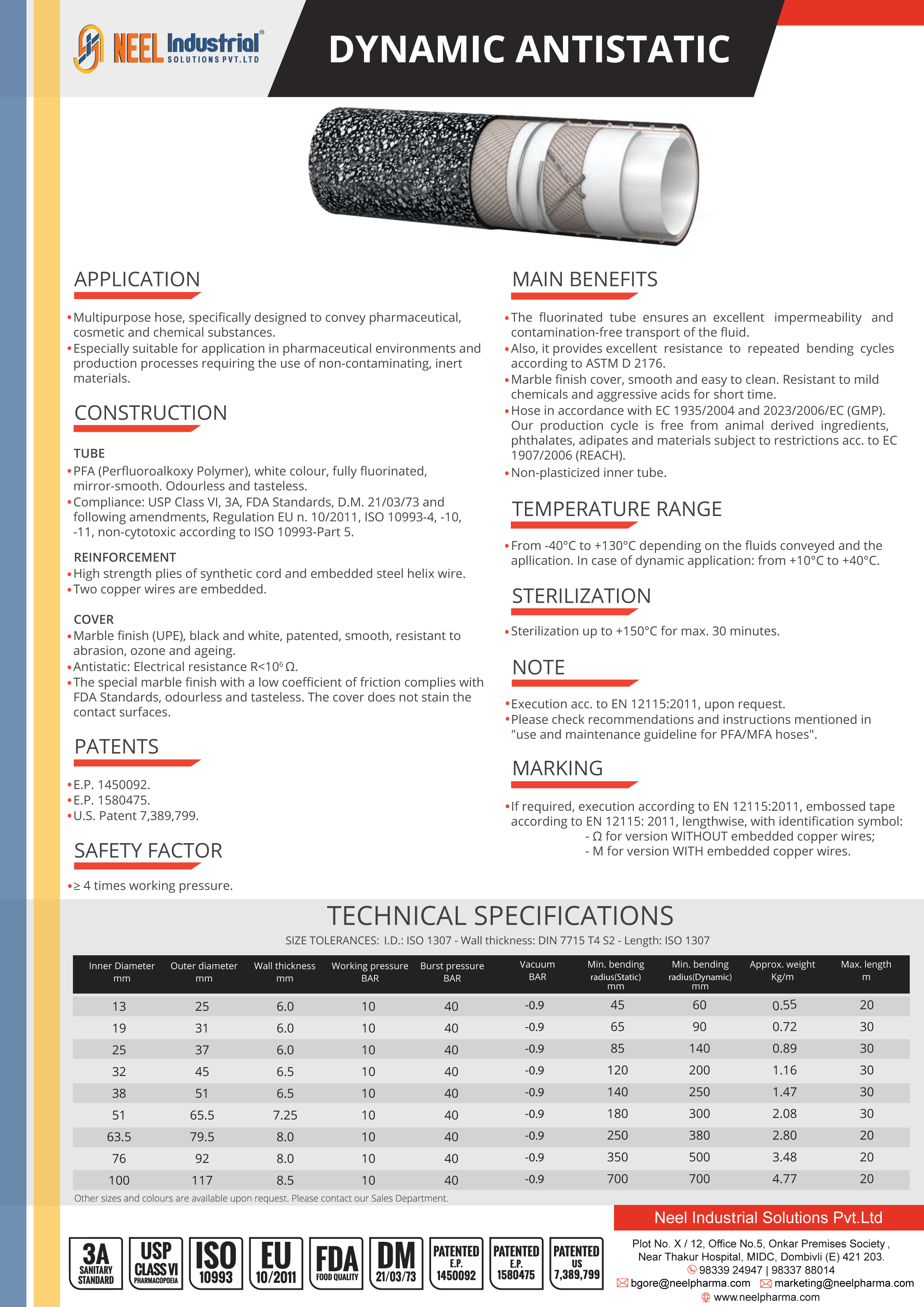

CONSTRUCTION

• TUBE PFA (Perfluoroalkoxy Polymer), white colour, fully fluorinated, mirror-smooth. Odourless and tasteless.
  Compliance: USP Class VI, 3A, FDA Standards, D.M. 21/03/73 and following amendments, Regulation EU n. 10/2011, ISO 10993-4, -10, -11, non-cytotoxic according to ISO 10993-Part 5. REINFORCEMENT
• REINFORCEMENT High strength plies of synthetic cord and embedded steel helix wire. Two copper wires are embedded.
• COVER Marble finish (UPE), black and white, patented, smooth, resistant to abrasion, ozone and ageing.
  Antistatic: Electrical resistance R <= 106 ohm
  The special marble finish with a low coefficient of friction complies with FDA Standards, odourless and tasteless. The cover does not stain the contact surfaces.

APPLICATION

Multipurpose hose, specifically designed to convey pharmaceutical, cosmetic and chemical substances. Especially suitable for application in pharmaceutical environments and production processes requiring the use of non-contaminating, inert materials.

TEMPERATURE RANGE

From -50°C to +170°C depending on the fluids conveyed. The a.m. temperature range has to be considered as a rough indication reffering to most chemicals.
Sterilization upto +130°C for max. 30 minutes.
